1064 nm Bandpass Filter

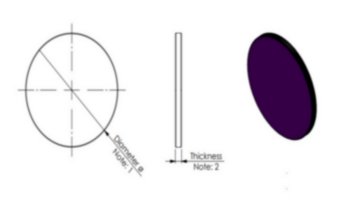

- Diameter: Minimum 15 mm, Maximum 40 mm
- Thickness: 2 mm
- T @1064 nm (AOI=0): ≥ %95
- T average @1064 nm (AOI=0–15): ≥ %90

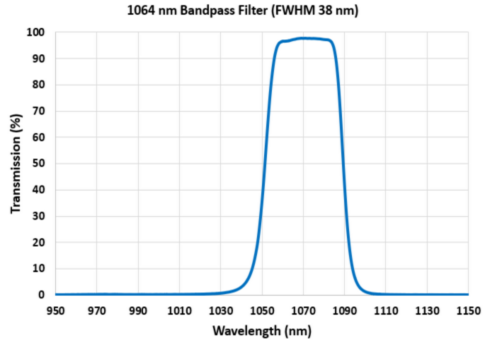

- Full Width Half Maximum (FWHM): 35–40 nm
- Material: RG850
- Surface Flatness: < 3′
- Parallelism: < 3′
- Surface Quality: 60–40 Scratch-Dig
- RMS Surface Roughness
- Optical Density (OD): 4–5 between 200–1200 (average)
- Operating Temperature: -40 °C to 80 °C
| TEST TYPE | Relevant MIL-STD COMPONENT LEVEL | Relevant ISO-STD COMPONENT LEVEL TEST | Relevant MIL-STD SYSTEM LEVEL |
|---|---|---|---|
| Humidity | MIL-C-48497A (4.5.3.2) | 9022-12-07 | MIL-STD-810G (507.5) |
| Abrasion | MIL-C-48497A (4.5.3.3) | 9211-4-01-01 | - |
| Adhesion | MIL-C-48497A (4.5.3.1) | 9211-4-02-02 | - |
| Temperature Cycle | MIL-C-48497A (4.5.4.1) | 9022-2-10-08(or 09) & 9022-2-11-07(or 08) | MIL-STD-810G (501.5 & 502.5) |
| Temperature Shock | - | 9022-2-15-04 | MIL-STD-810G (503.5) |
| Solubility & Cleanability | MIL-C-48497A (4.5.4.2) & MIL-C-48497A (4.5.5.3) | 9211-4-4-01 & 9211-4-4-05 | - |
