EOB Space-Grade 4Mpx Video Camera with optional H.264
CUSTOM
GET QUOTE
For a quote on your custom requirements please send us your drawing or specification.

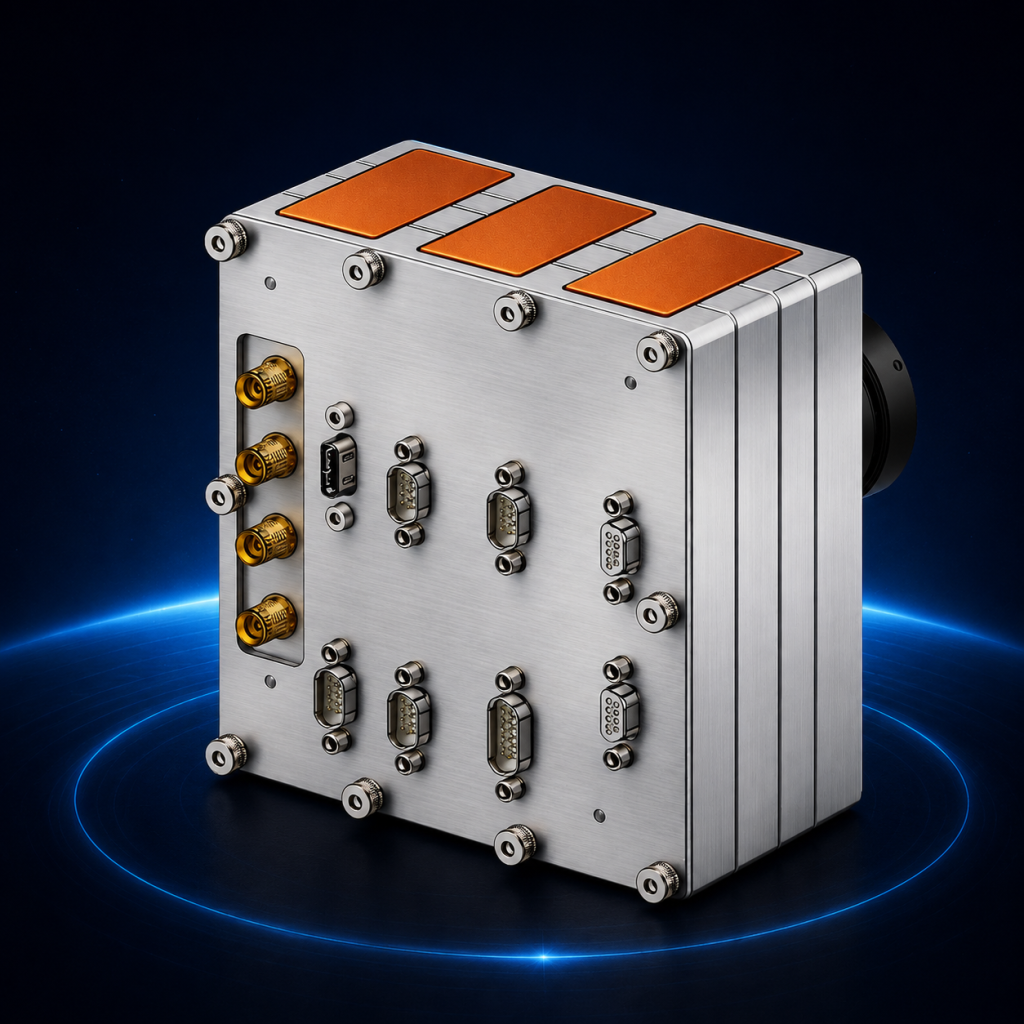

The EOB Camera is a compact, space-ready wide-angle imaging payload engineered for high-reliability space missions. By combining a high-resolution global shutter CMOS sensor with an embedded hardware encoder, it supports both H.264 video compression and uncompressed RAW video output — delivering high-quality, wide field-of-view imagery while optimizing downlink bandwidth and onboard data handling.
Its flexible architecture can be customized for smart camera applications such as star-tracking or object detection, and the modular interface set enables seamless integration into a wide range of satellite buses and advanced embedded platforms.
Applications: Lunar Orbiter, LEO EO imaging
| Parameter | Specification |
|---|---|
| Sensor | Global Shutter Visible CMOS image sensor (Monochrome / Bayer RGB option) |
| Resolution | 4 MP 2048 × 2048 |
| Frame Rate | 180 FPS with single 8 Gbit SerDes 90 FPS with dual 2 Gbit SerDes |
| FOV | 40° (H) x 40° (V) |
| Dark Current (25°C) | <120 e-/s |
| Read Noise | <12 e- |
| Electronic Architecture | Flash SoC Onboard H.264 video compression 2 GB + ECC DDR4 (PL) 2 GB + ECC DDR4 (PS) >2 Tb NAND Custom global and local SEL protections |
| Interface | Redundant supply input 2 x SERDES (up to 2 Gbit or 8 Gbit selectable) 1 x USB 3.2 (Type-C) 2 x SpaceWire / 5 bit LVDS 2 x TMTC (CANBUS) 2 x PPSIN (RS485 / RS422) 2 x PPSOUT (RS485 / RS422) 1 x FSYNC IN/OUT TEST I/F |
| Power Supply | 9V–13.8V (configurable to 5V–14V) |
| Power Consumption | 9.5 W |
| Operating Temperature Range | -30 °C to +60 °C |
| Dimensions | 90 x 90 x 96 mm³ |
| Mass | 655 g |
| Vibration / Shock | 20.4 grms / 1000 g |
| Radiation | >20 krad TID, SEL LET > 43 MeV.cm²/mg |
